The usable fastening range and the preferred selection figure when published.
Chicago Pneumatic Dealer and Industrial Air Tools in Southern California
Toolytics is an authorized Chicago Pneumatic dealer and distributor supplying industrial pneumatic tools to production, maintenance, and assembly operations across Los Angeles, Orange County, the Inland Empire, and the Las Vegas metro. These are industrial-grade tools for the plant floor, not consumer or rental equipment. Tell us the tool or the application and we will source it and help you spec it right. We also supply portable and construction equipment and stationary air compressors and air treatment.
Technical Tool Selection Center
Find the Model, Verify the Air, or Support an Existing Tool
Manufacturer data interpreted around the application and the compressed air system behind it.
Peak removal capability, not a controlled tightening specification.
Consumption while the tool is doing work. Do not mix it with average air ratings.
A fastener and joint target, not automatically the required tool output.
Impact wrenches by output drive
14 representative models
No models match these filters. Clear the filters or ask for help selecting a tool.
Scroll to see all columns. Keyboard: focus the table area and use the arrow keys.
| Model | Output drive | Working torque, forward (ft.lb) | Max torque, reverse (ft.lb) | Weight (lb) | Air at 90 PSI (cfm) |
|---|---|---|---|---|---|
| CP721 | 3/8 in | 5.2–50.2 | 75 | 2.65 | 10 |

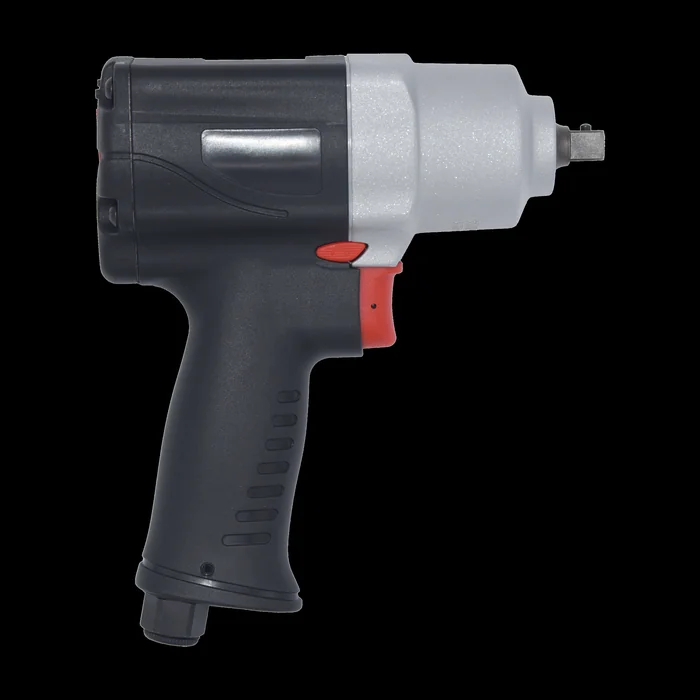

| CP7729 | 3/8 in | 50.2–300 | 415 | 2.76 | 20 |
| CP7737 | 1/2 in | 25.1–165 | 221 | 2.49 | 16 |
| CP749 | 1/2 in | 50.2–450 | 610 | 5.51 | 22 |
| CP7748-P | 1/2 in | 70.1–553 | 959 | 4.65 | 25 |
| CP9561 | 3/4 in | 148–701 | 922 | 11.2 | 30 |
| CP8272-P | 3/4 in | 184–922 | 1220 | 7.28 | 38 |
| CP7769-P | 3/4 in | 300–1,080 | 1440 | 6.94 | 31 |

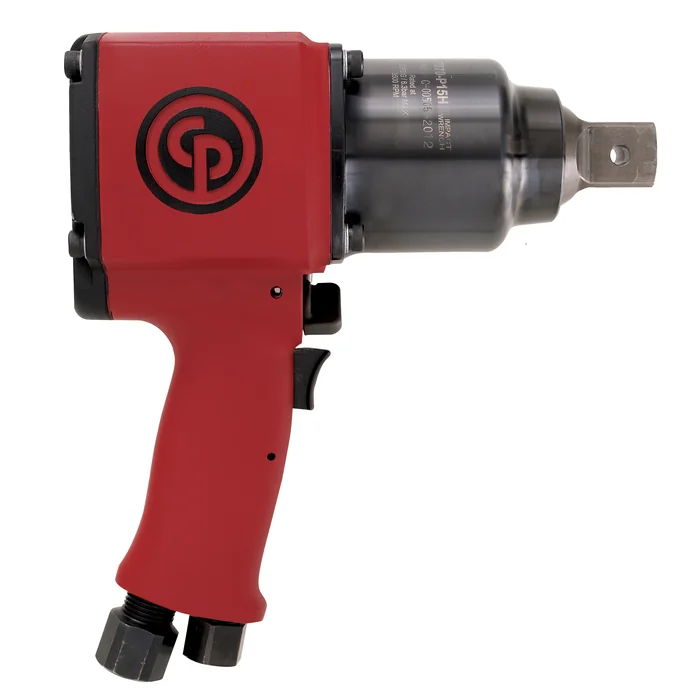

| CP6070-P15H | 1 in | 199–900 | 1100 | 11.9 | 52.9 |
| CP7783 | 1 in | 413–1,250 | 1770 | 18.5 | 40.4 |
| CP0611-D28H | 1 in | 900–1,800 | 2800 | 22.9 | 68 |
| CP6930-D35 | 1-1/2 in | 443–1,950 | 2880 | 31.6 | 64 |

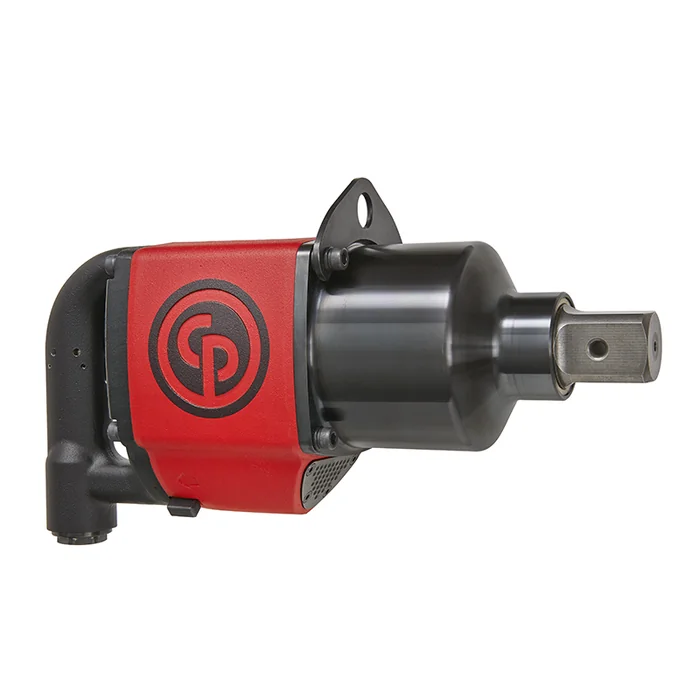

| CP6135-D80 | 1-1/2 in | 740–4,055 | 5900 | 35.2 | 84.5 |

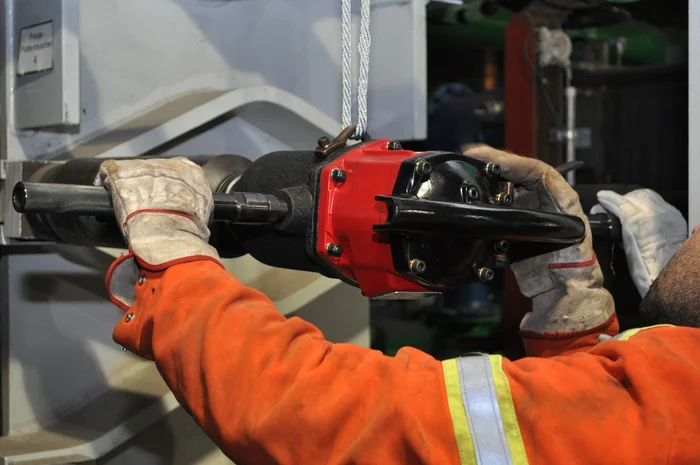

| CP6130-T70 | 1-1/2 in | 2,430–5,240 | 9220 | 72.7 | 67.3 |
Air consumption by tool type
Scroll to see all columns. Keyboard: focus the table area and use the arrow keys.
| Tool type | Air at 90 PSI (cfm) | Typical | Primary system concern | Models referenced |
|---|---|---|---|---|
| Percussive tools (chipping, scaling, needle) | 3 to 28 | 6.4 | Hose length and coupling restriction | 32 |
| Ratchet wrenches | 8.7 to 17 | 14 | Hose and regulator sizing | 11 |
| Sanders and polishers | 2.5 to 80 | 17 | Continuous duty and pressure drop | 115 |
| Screwdrivers and assembly tools | 8.5 to 30 | 19.5 | Stable pressure for repeatable torque | 8 |
| Die grinders | 2.1 to 86 | 21 | Continuous airflow | 59 |
| Drills | 3 to 80 | 23 | Duty cycle and simultaneous use | 19 |
| Impact wrenches | 10 to 84.5 | 31 | Pressure at the point of use | 51 |
| Angle grinders | 8 to 110 | 63 | Compressor and distribution capacity | 59 |
Bolt torque and impact tool selection reference
Recommended tightening torque, imperial (ft.lb)
Scroll to see all columns. Keyboard: focus the table area and use the arrow keys.
| Bolt grade | 1/2" | 5/8" | 3/4" | 7/8" | 1" | 1-1/4" | 1-1/2" |
|---|---|---|---|---|---|---|---|
| Grade 5 | 28 | 55 | 97 | 155 | 230 | 480 | 860 |
| Grade 8 | 70 | 140 | 250 | 405 | 600 | 1,080 | 1,950 |
| ASTM A574 | 99 | 198 | 350 | 566 | 848 | 1,750 | 3,125 |
| ASTM A325 | - | 200 | 355 | 570 | 850 | 1,495 | 2,600 |
| ASTM A490 | - | 250 | 435 | 715 | 1,070 | 2,125 | 3,700 |
Recommended tightening torque, metric (Nm)
Scroll to see all columns. Keyboard: focus the table area and use the arrow keys.
| Property class | M10 | M12 | M16 | M20 | M24 | M30 | M36 |
|---|---|---|---|---|---|---|---|
| 8.8 | 47 | 81 | 197 | 385 | 665 | 1,310 | 2,280 |
| 10.9 | 65 | 114 | 277 | 541 | 935 | 1,840 | 3,210 |
| 12.9 | 79 | 136 | 333 | 649 | 1,120 | 2,210 | 3,850 |
Will the available air support the tools in use?
Enter the manufacturer’s air at load figure for one tool, then account for how many tools may run together and for how long.
Simultaneous demand50.0 cfm
Duty-adjusted average12.5 cfm
This is a screening estimate, not compressor sizing. Receiver storage, pressure drop, hose and coupling restrictions, other plant demand, and compressor duty still need review. See air compressor sizing for air tools for the full method.
Request a point-of-use air reviewGet the right record for the exact tool revision.
Send the model, serial number, and a nameplate photo when available. Toolytics can help locate or confirm:
- Product data sheet: current specifications and operating requirements
- Instruction and safety manual: installation, operation, lubrication, and warnings
- Parts list or service reference: model-specific components, kits, and repair information
- Replacement model cross reference: a current option for older or discontinued tools
Authorized CP Distributor
Genuine Chicago Pneumatic industrial tools, parts, and accessories, sourced direct.
Application-Based Tool Selection
Matched by fastener, material, duty cycle, access, and operator.
Tools + Compressed-Air Expertise
We check pressure, CFM, hose, and couplings so the tool performs to spec.
Start With the Application
What does the tool need to do?
Start with the work, not the catalog. Each path jumps to the matching tool category below.
Fasten & Remove
Impact wrenches, ratchets, and controlled-torque options.
Drill & Prepare
Pistol, straight, and angle drills for industrial work.
Grind & Finish
Die grinders, angle grinders, sanders, and polishers.
Chip & Clean
Chipping hammers, needle scalers, and percussive tools.
Already have a Chicago Pneumatic tool?
Request parts, accessories, tune-up kits, or help finding a replacement model.
Support an Existing Tool
The Industrial Line
Chicago Pneumatic Tools We Supply
The full Chicago Pneumatic industrial range for production and maintenance environments. We source what your operation runs and help you choose the right model. Contact us for availability and pricing.

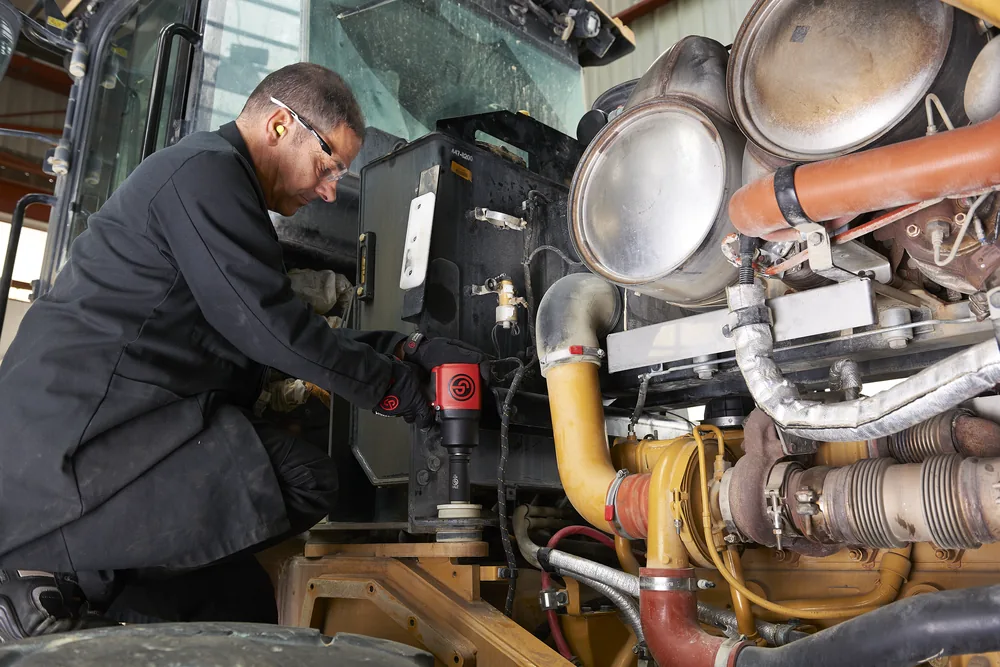

Impact Wrenches & Ratchets
High-torque air impact wrenches and ratchets for assembly, maintenance, and heavy fastening on the production floor.
- 3/8 inch through 1-1/2 inch industrial drives
- Working-range and reverse-torque selection
- Genuine Chicago Pneumatic, sourced direct
3/8 in through 2-1/2 in drive across the line · to 18,400 ft.lb
Request Fastening Help

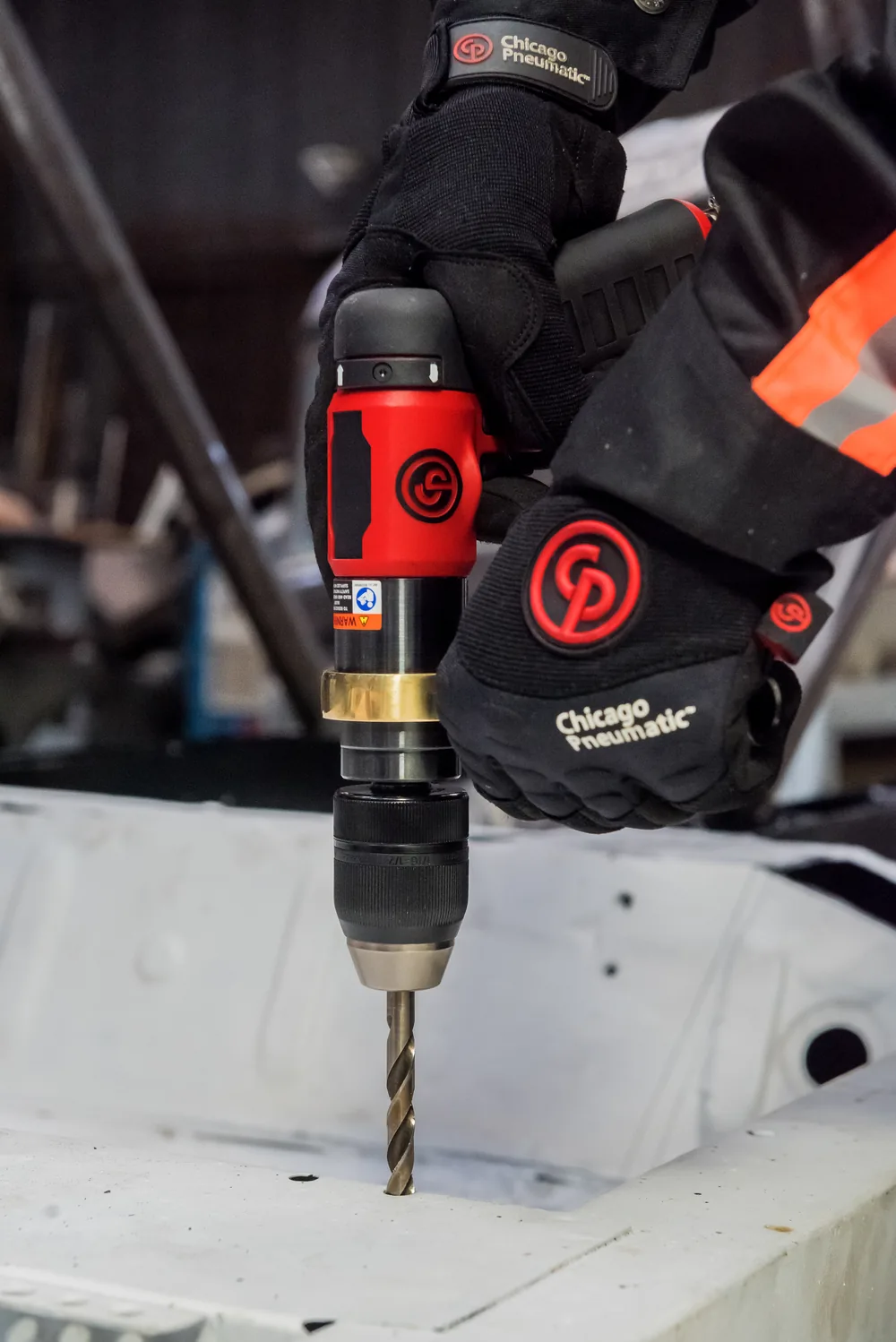

Drills
Pneumatic drills built for continuous-duty drilling in fabrication and maintenance work, in pistol, straight and angle configurations.
Pistol, straight, and angle · 3 to 80 cfm at 90 PSI
Request Drill Selection

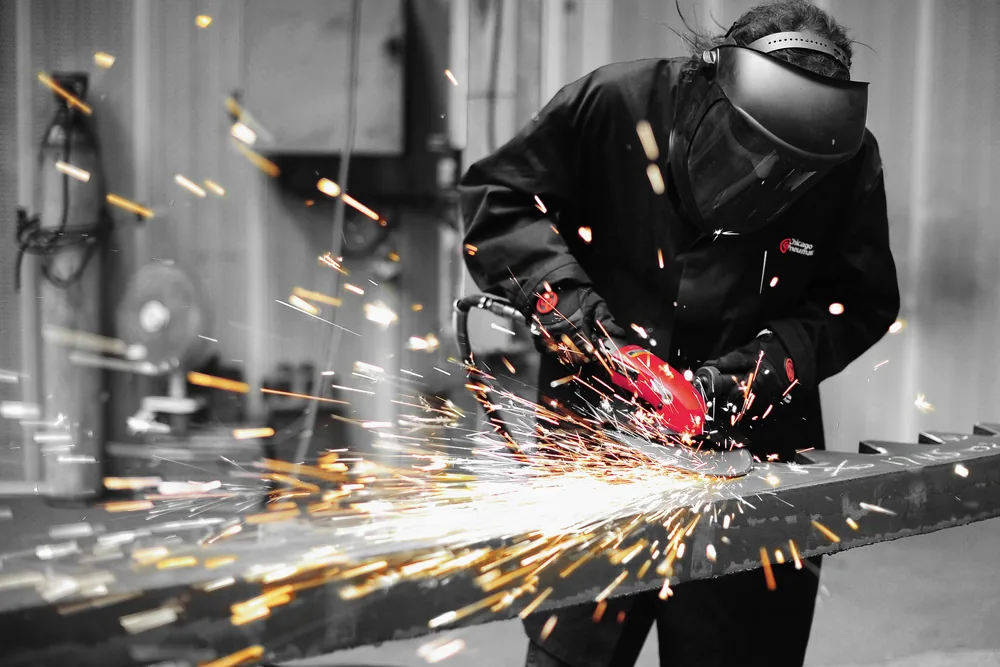

Grinders, Sanders & Polishers
Die grinders, angle grinders, sanders, and polishers for material removal, weld dressing, and surface finishing.
To 9 inch wheel · 2.1 to 110 cfm at 90 PSI
Request Finishing Tool Help

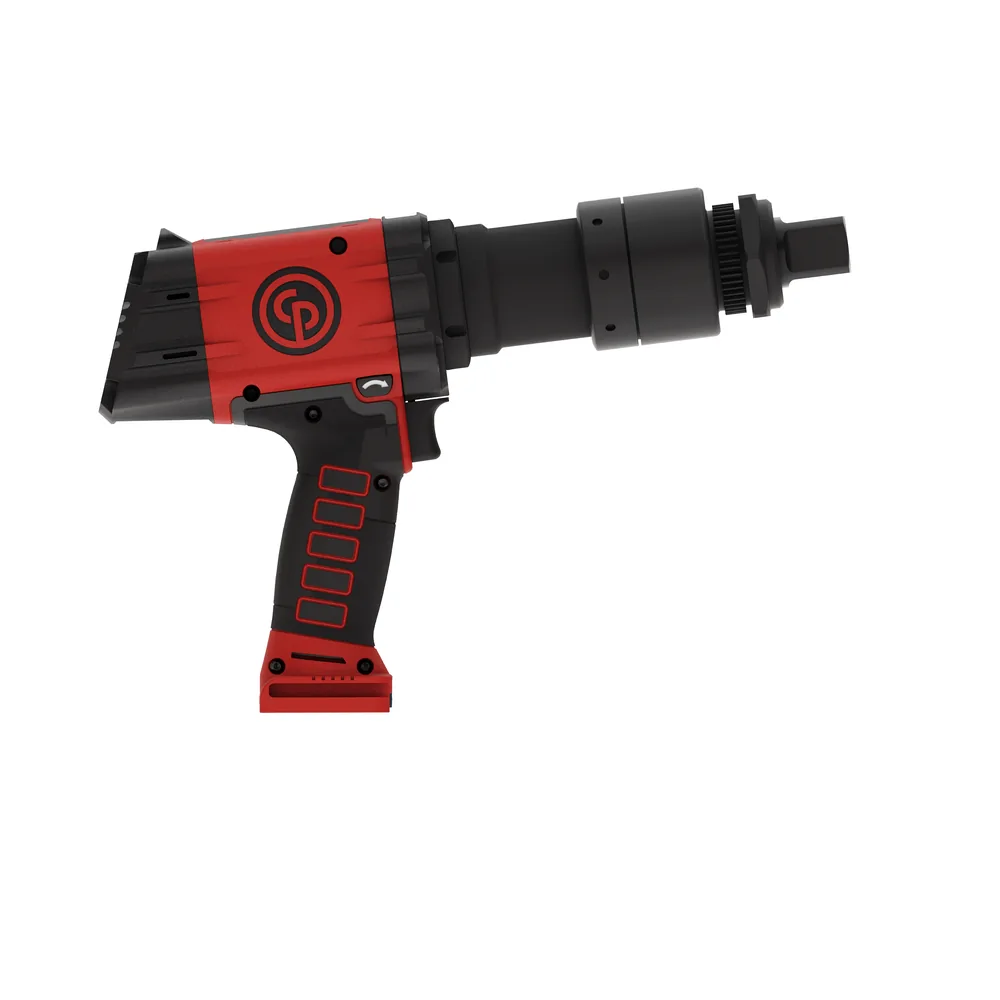

Assembly Tools
Air screwdrivers and nutrunners for controlled-torque assembly, plus the CP89 electronic and CP86 battery torque wrench series where fastening has to be documented.
Shut off and pulse · 8.5 to 30 cfm at 90 PSI
Discuss an Assembly Application

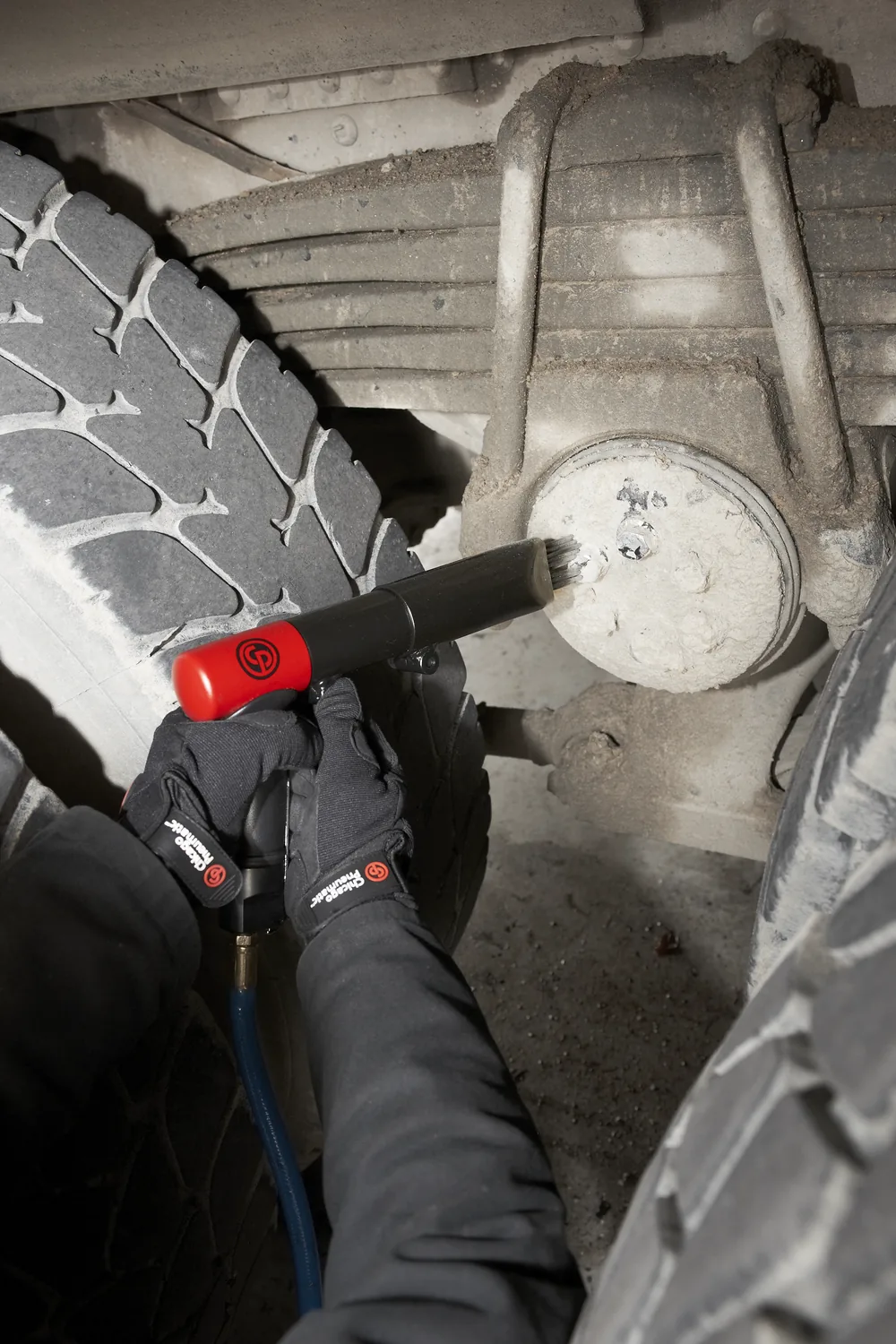

Chipping Hammers & Needle Scalers
Percussive tools for scaling, deburring, weld cleaning, and surface prep in industrial maintenance.
Chipping, scaling, needle · 3 to 28 cfm at 90 PSI
Request Percussive Tool Help
The Air Behind the Tool
Can Your Compressed-Air System Support the Tool?
Published air consumption is only part of the calculation. Simultaneous use, duty cycle, hose length, hose diameter, couplings, regulator sizing, and pressure drop all affect actual performance.
Check My Available Air SupplyRatchets and smaller tools
Often manageable on existing systems when hose and regulator sizing are correct.
Impacts, drills, die grinders
Performance depends heavily on available pressure at the tool, not only compressor rating.
Production sanding and grinding
Continuous duty can expose undersized piping, regulators, and receiver capacity.
Large tools or simultaneous use
May require a full system review of compressor capacity, distribution, and point-of-use equipment.
More Than a Parts Counter
The Right Tool, and the Air System to Make It Perform
Anyone can ship you a tool. The difference is getting the right one for the job and the air behind it. That is where a distributor who also lives in compressed air earns its keep.
One Vendor for Tools and Air
We also service the compressors and air systems that feed these tools, so one call covers the whole loop.
The Right Tool for the Job
We match the tool to the application by torque, duty cycle, and ergonomics for the people running it every shift.
Air Supply Check
A tool is only as good as the air behind it. We check CFM, pressure, hose, and drop sizing so the tool performs to spec.
Authorized Sourcing
Genuine Chicago Pneumatic tools sourced direct, with model selection and replacement help. No gray-market guesswork.
Need parts, accessories, or a replacement for an existing CP tool?
Send the current model, serial number, part number when available, and a clear photo of the tool or nameplate.
Featured Model Examples
Compare Representative 1/2 Inch Impact Wrenches
Representative 1/2 inch models, not the complete range. Working torque, forward and max torque, reverse figures come from the current CP General Industry catalog, rated at 90 PSI through a 3/8 inch hose. Final selection should use working torque, not maximum reverse torque alone. Full range in the selection center below.
Compact Maintenance
Request CP7737 Pricing
CP7737
Compact 1/2 in industrial impact wrench
| Working, fwd | 25.1–165 ft.lb |
|---|---|
| Max, rev | 221 ft.lb |
| Air @ 90 PSI | 16 cfm |
| Weight | 2.49 lb |
General Industrial Maintenance
Request CP749 Pricing

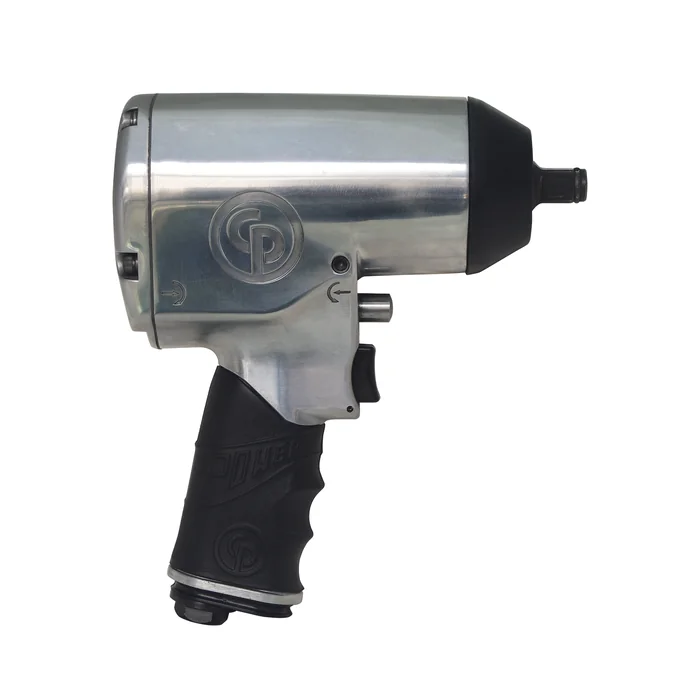

CP749
1/2 in industrial impact wrench, twin hammer
| Working, fwd | 50.2–450 ft.lb |
|---|---|
| Max, rev | 610 ft.lb |
| Air @ 90 PSI | 22 cfm |
| Weight | 5.51 lb |
Higher-Output Fastening
Request CP7748-P Pricing
CP7748-P
1/2 in industrial impact wrench
| Working, fwd | 70.1–553 ft.lb |
|---|---|
| Max, rev | 959 ft.lb |
| Air @ 90 PSI | 25 cfm |
| Weight | 4.65 lb |
The Complete Line
Looking for Another Chicago Pneumatic Tool?
Open a category to review the additional tool families we can source, or send us the model number and we will confirm sourcing and lead time for your facility.
Fastening and Bolting

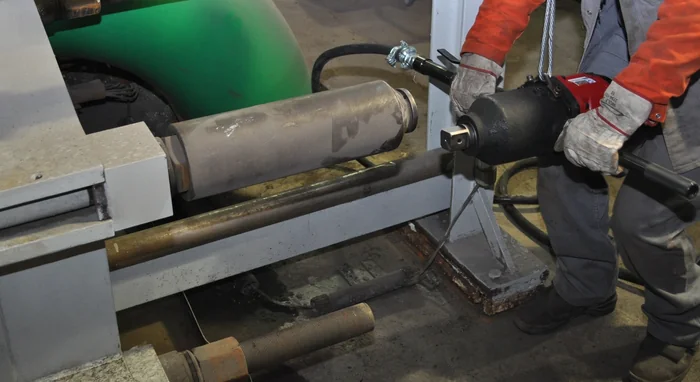

- Impact wrenches, 3/8 inch through 2-1/2 inch drive, to 18,400 ft.lb
- Ratchet wrenches, compact and low profile for restricted access
- Torque wrenches, including the CP89 electronic and CP86 battery series for documented bolting
- Screwdrivers and nutrunners, controlled torque assembly, shut off and pulse
Material Removal and Finishing
- Die grinders, straight, angle and extended, collet capacity to 1/4 inch
- Angle grinders, to 9 inch wheel, with auto balancer options on the industrial series
- Sanders and polishers, orbital, random orbital, belt and angle, with vacuum options
- Percussive tools, chipping hammers, needle scalers, flux chippers and scabblers
Fabrication and Specialty
- Drills, pistol, straight and angle, with reversible and quick change chucks
- Riveters, squeeze and hammer riveting for aerospace and sheet metal
- Specialty and cutting tools, saws, nibblers, shears and pullers
Additional Chicago Pneumatic Products
- Air motors, vane and piston motors for OEM and process applications
- Cordless and electric tools, battery impact wrenches, torque wrenches and specialty tools
- Workshop equipment, lift equipment, cranes, presses, wheel dollies and jump starters
- Air line accessories, hose, couplings, filtration, regulation, lubrication and balancers
FAQ
Common Questions
-
Are you a Chicago Pneumatic dealer in Los Angeles?
Yes. Toolytics is an authorized Chicago Pneumatic dealer and distributor serving Los Angeles County, Orange County, Riverside County, San Bernardino County, and the Las Vegas metro. We supply the industrial air tool line and we service the compressed air systems that run it.
-
Do you sell industrial air tools to shops, or is this consumer tools?
These are industrial-grade Chicago Pneumatic tools for production, maintenance, and assembly operations. We are an authorized distributor, not a consumer retailer or a rental house.
-
Can you help me pick the right tool for my application?
Yes. We help match the tool to the job by torque, duty cycle, ergonomics, and air consumption, and we confirm your air supply can feed it. That is the part a price-only online listing skips.
-
Do you carry Chicago Pneumatic assembly tools and nutrunners?
Yes. We source the full Chicago Pneumatic industrial line, including impact wrenches, ratchets, drills, grinders, and sanders, along with assembly tools like air screwdrivers, nutrunners, and the CP89 electronic and CP86 battery torque wrench series.
-
What areas do you supply?
We supply industrial tools across Southern California, including Los Angeles, Orange County, and the Inland Empire, and into the Las Vegas metro. Call (844) 310-8665 to confirm sourcing and delivery for your facility.
-
Can you also service the compressor that runs these tools?
Yes. We service compressed air systems every day, so the same team that sources your tools can keep the air behind them running. One vendor for the tools and the air that powers them.
